Understanding Piano Roll View in Cakewalk Next

If you want to shape your MIDI performance, the Piano Roll View in Cakewalk Next is where you’ll do it. It’s the main space for drawing, editing, and refining notes so you can build everything from simple melodies to full drum patterns. Here’s how to get started using it.

Opening the PianoRoll View

To begin editing MIDI:

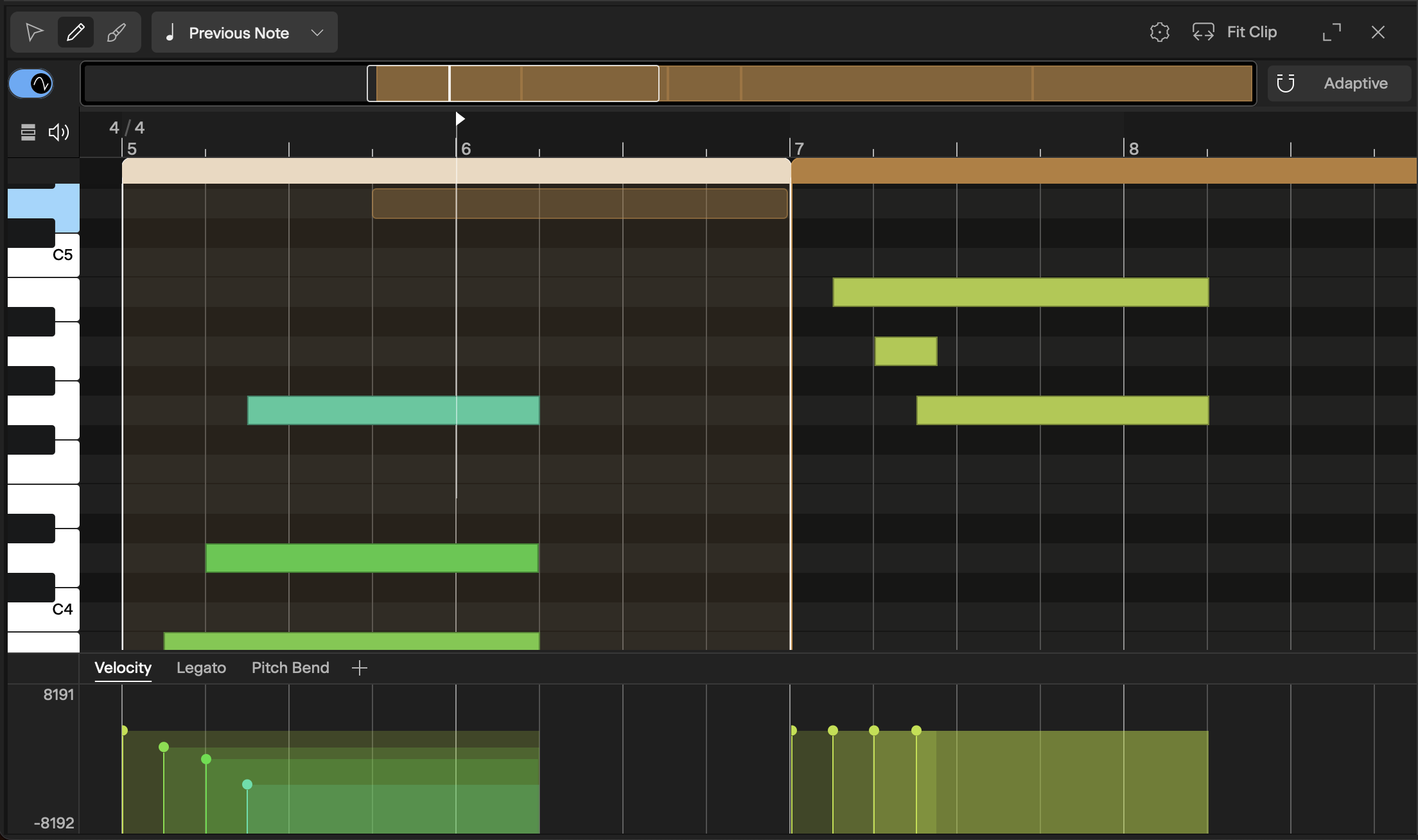

• Double-click a MIDI clip in your project, or go to View > Show Piano Roll. Once opened, you’ll see a piano roll interface. Time runs left to right, and pitch runs from bottom (low notes) to top (high notes).

Understanding the Layout

The Piano Roll view is designed to keep things simple while giving you control when you need it.

• Grid Area (Piano Roll): Where your notes appear as horizontal bars
• Piano Keyboard (Left Side): Shows note names and lets you preview sounds
• Timeline (Top): Displays bars and beats to help with timing
• Velocity + CC Panel (Bottom): Used to control how notes are played (like how hard or expressive they sound)
• Timeline Navigator: A mini overview of your clip for quick navigation and zooming

The Three Main Tools

You’ll mainly work with three tools. These are designed to feel intuitive, even if you’ve never used a MIDI editor before.

Smart Tool

This is your go-to tool for most tasks.

• Click to select notes
• Drag to move notes around
• Drag edges to resize notes (change duration)

Draw Tool

Use this to create new notes.

• Click and drag in the grid to draw notes
• The length of your drag determines how long the note is

Great for writing melodies, basslines, or chords from scratch.

Fill Tool

Perfect for quick, pattern-based input (especially drums).

• Click grid cells to toggle notes on/off
• You can also click and drag to draw notes quickly

This is the fastest way to build rhythmic patterns.

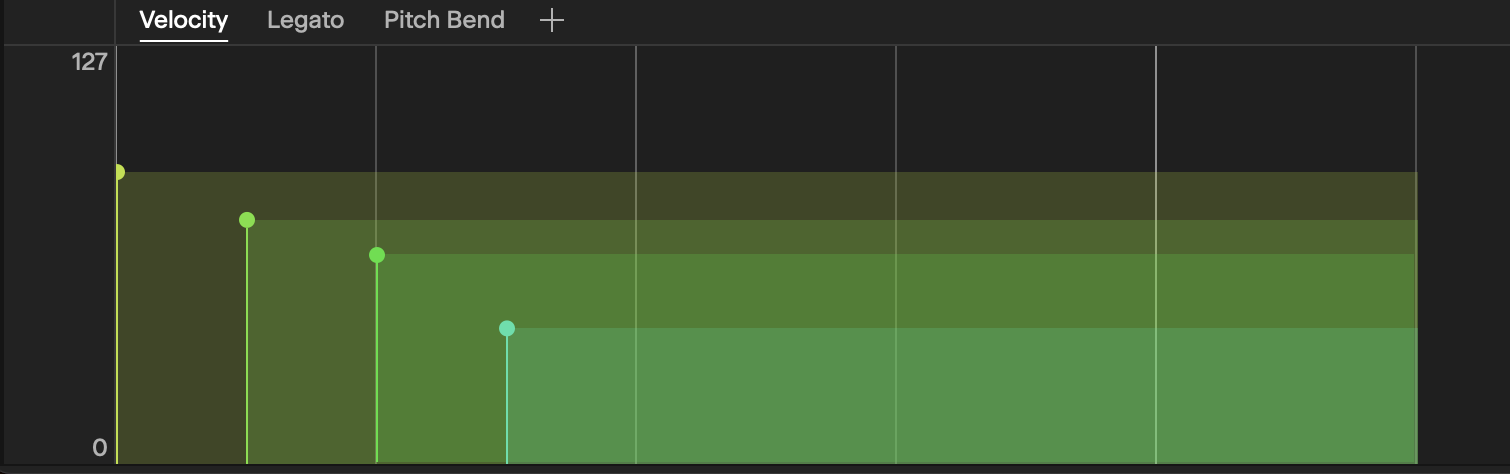

Working with Velocity (Dynamics)

Velocity controls how “strong” or “soft” a note is played.

• Open the Velocity panel at the bottom
• Each note has a vertical bar representing its velocity
• Drag bars up or down to adjust

Higher velocity = louder or more intense sound (depending on the instrument)

Navigating Your MIDI Track

Use the Timeline Navigator to quickly move around:

• Drag to scroll through your clip
• Zoom in/out for detailed or broad views (Ctrl + Scroll)
• Jump to different sections instantly

Tips for Beginners

• Start simple — try a short melody or basic drum loop first
• Use the Smart Tool when unsure — it handles selecting, moving, and resizing notes
• Don’t worry about perfection — MIDI is easy to edit anytime
• Experiment with velocity to make your music sound more natural and expressive
• Expect some trial and error — learning by doing helps things click faster
