Cakewalk Next HC - MIDI Editor Revamp

Cakewalk Next introduces a fully redesigned MIDI editor and piano roll, built to feel faster, clearer, and more musical. Whether you’re sketching ideas or polishing a final performance. This article walks through what’s new, how the editor works, and some tips to help you get comfortable quickly.

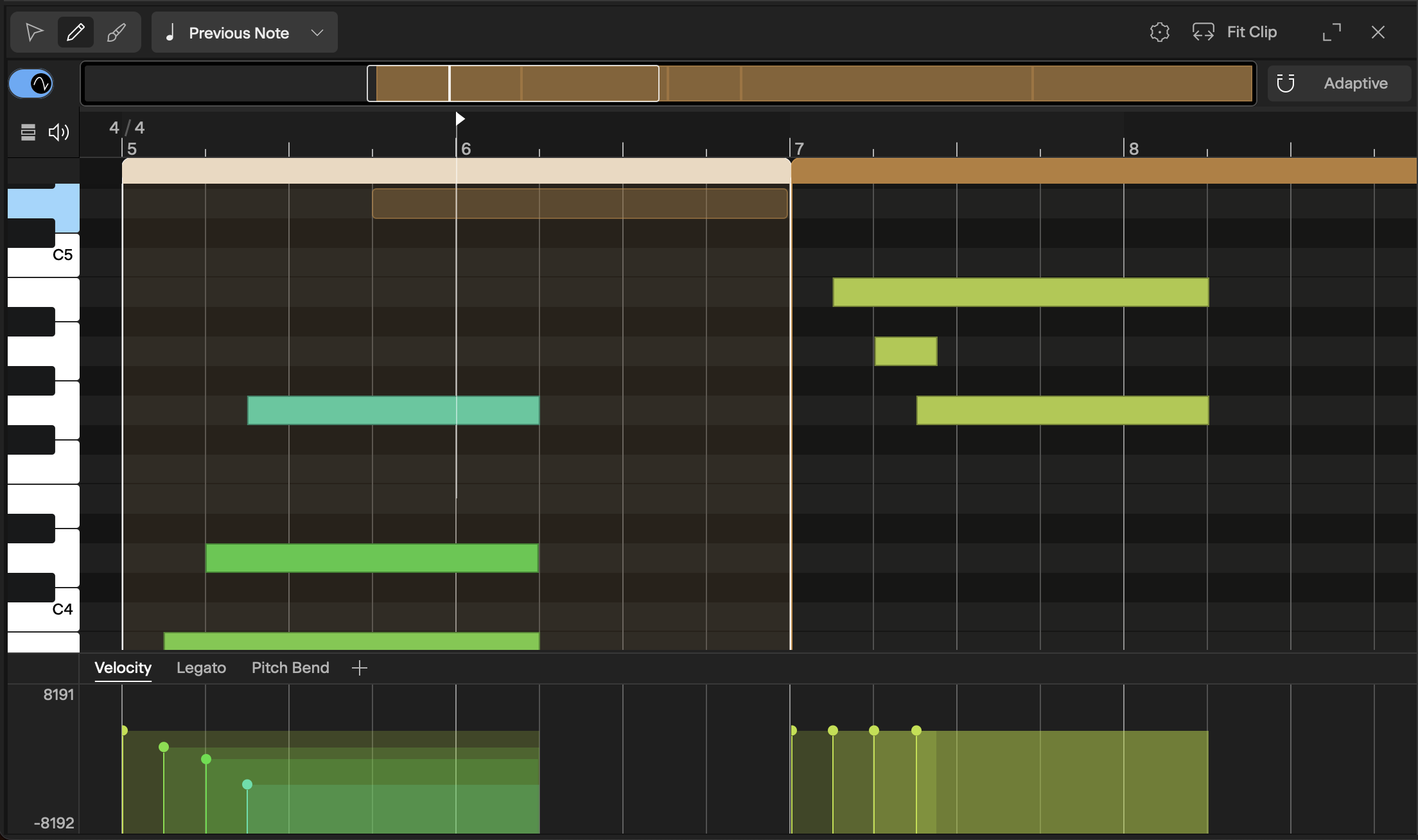

Piano Roll Layout

The redesigned Piano Roll is organized to keep essential information visible without clutter. You can open it by double-clicking an existing MIDI clip. If you don't have one yet, you can always right click in Track View and choose "Insert Empty MIDI Clip"

• Note Grid – Displays MIDI notes across time (horizontal) and pitch (vertical).
• Piano Keyboard – Shown along the left side, providing visual pitch and octave reference.
• Timeline Ruler – Shows bars, beats, and subdivisions for precise timing.
• Timeline Navigator – A new overview strip that provides a bird’s-eye view of the clip and allows fast scrolling, zooming, and jumping to any position.
• Velocity + CC Automation Panel – A dedicated panel for editing velocity and MIDI controller data.

The layout adapts as you work, making it easy to move between broad edits and fine-grained adjustments.

Editing Tools

Cakewalk Next introduces three focused editing tools, designed to cover most MIDI workflows without constant tool switching.

Smart Tool

The Smart Tool is the default tool for MIDI editing. You can use it to select notes with a click or drag, move notes horizontally to adjust timing or vertically to change pitch, and resize notes by dragging their edges.

Draw Tool

The Draw Tool is used for creating notes directly in the grid. Click to place notes, and click and drag to create custom-length notes.

Fill Tool

The Fill Tool enables fast, step-style input. Click grid cells to toggle notes on or off, and quickly build drum patterns and rhythmic sequences.

Timeline Navigator

The Timeline Navigator provides a high-level overview of the entire MIDI clip and is designed for fast, fluid navigation, especially when working with longer or more detailed passages.

Within the navigator, you can:

• Scroll through the clip by dragging the visible window left or right.
• Zoom in or out using Ctrl + scroll to quickly change the time scale.
• Jump to any position by clicking directly on the desired location.

Because the Timeline Navigator is always visible, it’s easy to move around the clip without losing context or interrupting your editing flow. It’s particularly useful when switching between detailed note work and big-picture arrangement edits.

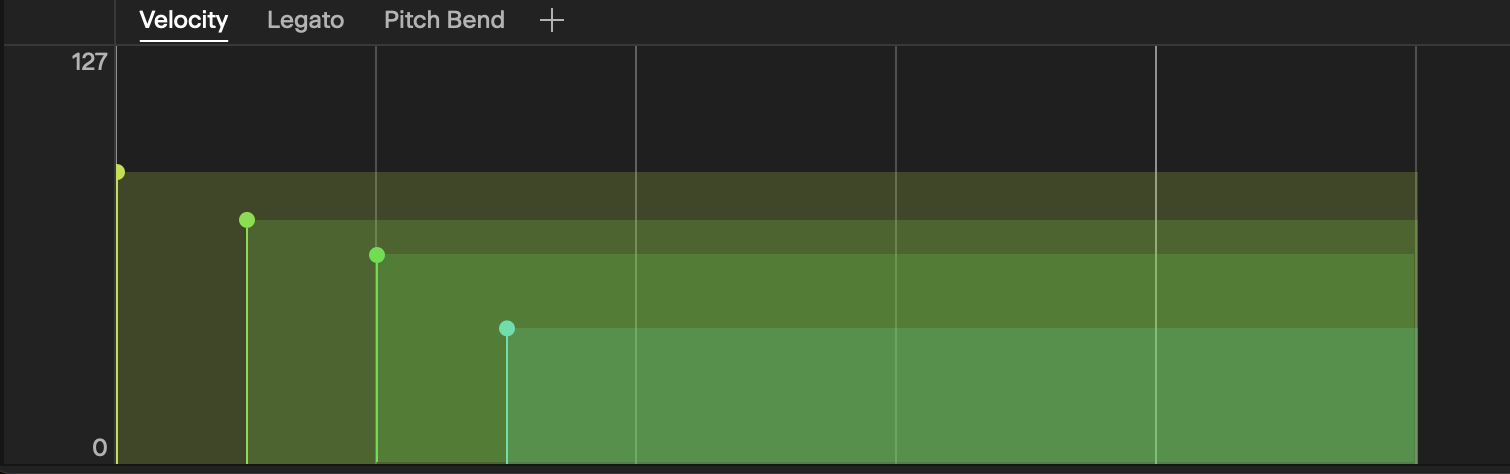

Velocity and MIDI CC Editing

Velocity and MIDI CC automation are now organized in their own dedicated panel below the Piano Roll. You can open it by using the Show Velocity & MIDI CC toggle, or by pressing Shift + A.

It allows you to switch easily between note editing and expressive editing, adjust velocity values visually for selected notes, and edit MIDI CC data without crowding the note grid.

Separating expression data into its own panel keeps performances easier to shape and understand.

Unified Shortcuts and Modifier Keys

Keyboard shortcuts and modifier behaviors have been unified across macOS and Windows, and aligned between the Tracks View and the MIDI Editor. This helps the application feel consistent no matter where you’re working.

Key modifier behaviors include:

• Opt/Alt + Drag – Duplicate clips or notes.
• Shift – Temporarily disable snap-to-grid.
• Cmd/Ctrl + Shift – Lock movement to a single axis (horizontal or vertical).
• Cmd/Ctrl – Toggle selection, or switch between lasso and time-range selection modes.
• Shift + Click – Extend a time-range selection.

If you’re coming from an earlier version, some muscle memory changes may be noticeable. Shortcut behavior continues to be refined, and customizable modifier key bindings are planned for a future update.
